Testing to standard – for your products too

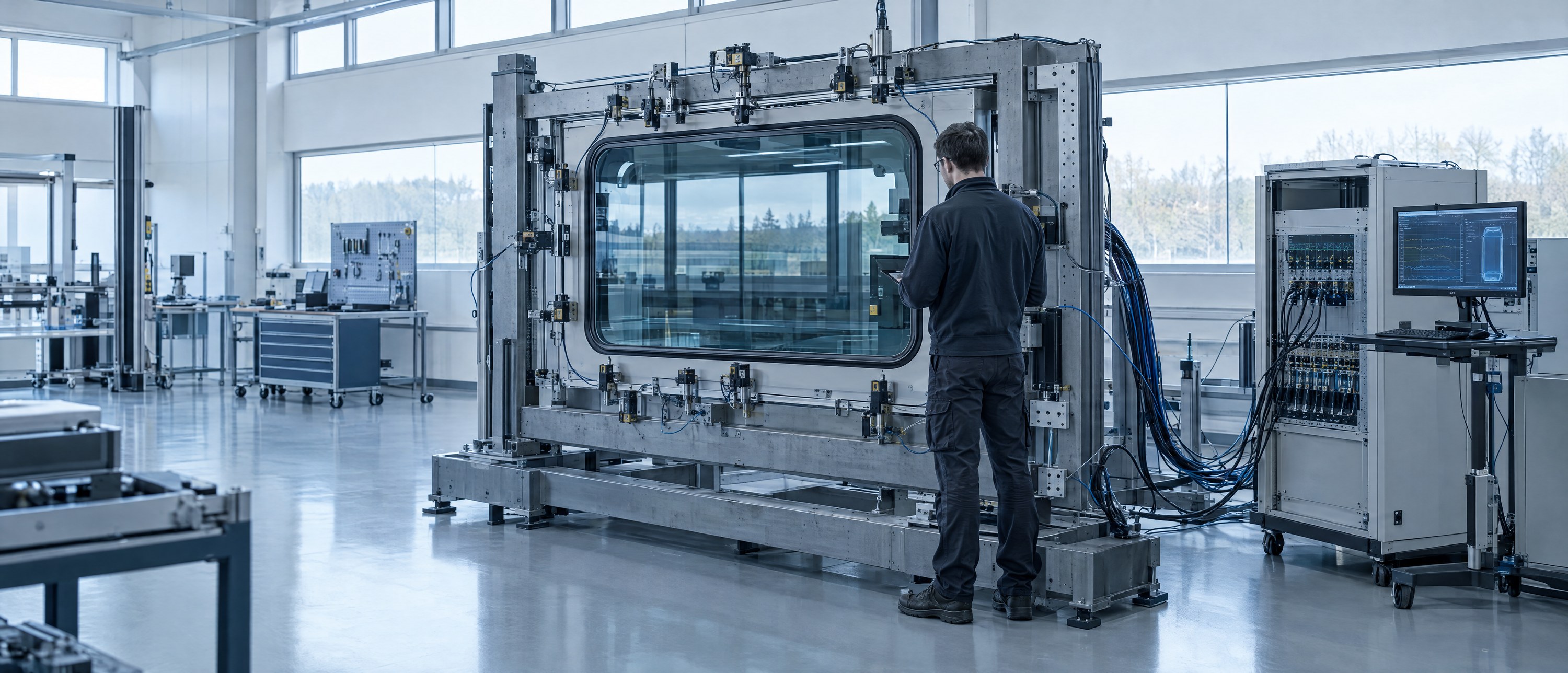

Test centre
Get to know the Cleff test centre. Simply make an appointment and tell us your individual test requirements. Together with you we raise the quality of the products and make them not only compliant but future-proof.
In our own test centre
- Pressure cycling test to UIC 566
- Water tightness testing of doors to DIN EN 14752 annex B
- Pressure tightness testing to DIN EN 14752 annex C
- Endurance testing of locking systems, hinges and windows
- Endurance function testing to DIN EN 1191
- Fire load list (UNIFE) to DIN EN 45545-2
- Fire risk analysis based on DIN EN 45545-5

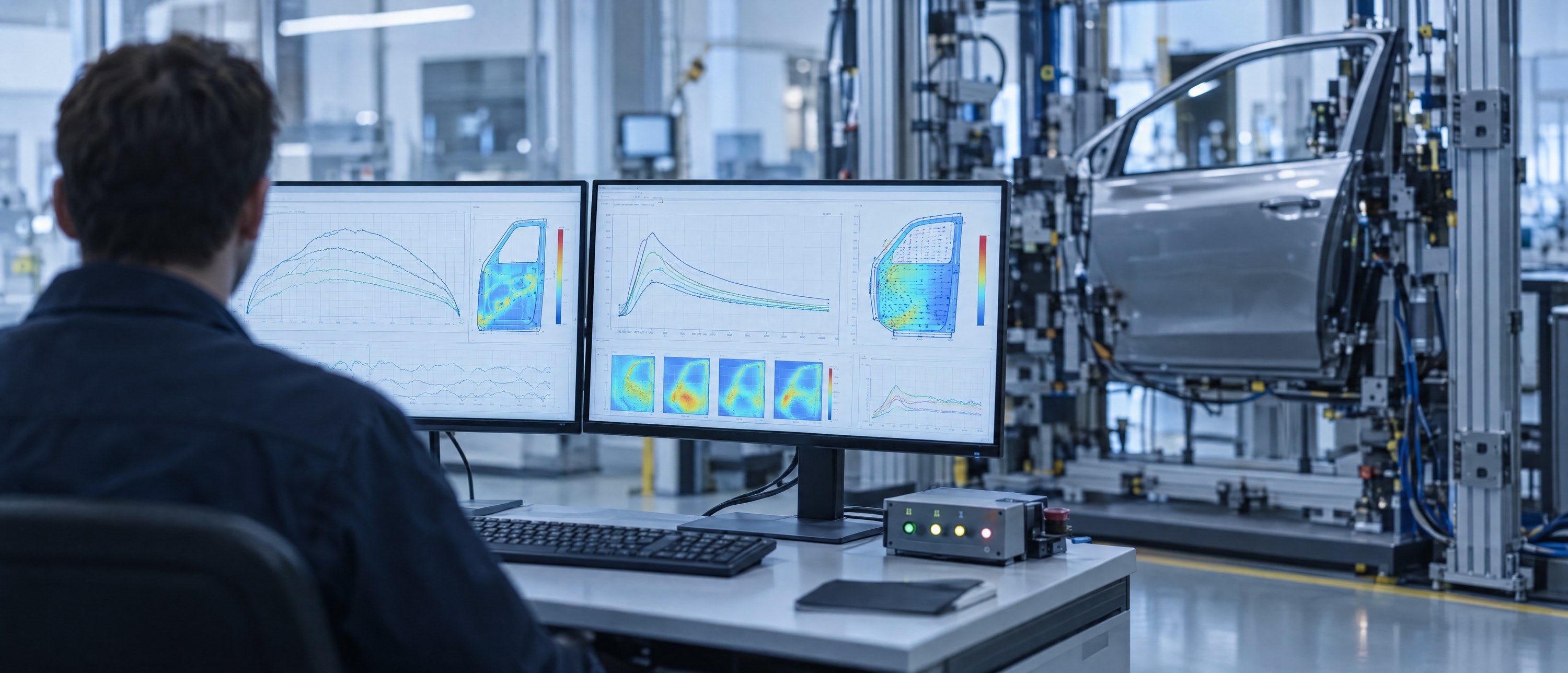

The test centre
Vehicle windows and doors must meet high requirements: wind loads, thermal sealing, tightness against driving rain, endurance over the entire vehicle life and safety in the passenger compartment. Part of the testing is carried out in our own test centre, part at commissioned external laboratories – the overview below shows which test runs where.
You receive reliable, documented and traceable results – and a partner who can derive the design improvement directly from the test result.
Our test centre tests to the relevant standards but is not itself accredited. Where an accredited body is required, we commission and supervise an external laboratory and provide the mock-up and installation.
Overview
Six test disciplines in house
We carry out these tests ourselves in Wuppertal – on the finished component, not on a model. The results go into the release documentation.
- 01Pressure cyclingUIC 566
Tunnel entry and train crossings create short pressure pulses. The rig reproduces them repeatably.
- 02Water tightnessDIN EN 14752 annex B
Driving rain on the outside, tightness checked on the inside.
- 03Pressure tightnessDIN EN 14752 annex C
Positive pressure outside, leakage rate measured on the inside.
- 04EnduranceDIN EN 1191
Opening and closing over many cycles on locking systems, hinges and windows, followed by a repeat tightness test.
- 05Fire load listDIN EN 45545-2
Compilation of the materials used and their fire performance values to the UNIFE specification.
- 06Fire risk analysisbased on DIN EN 45545-5
Assessment of the fire risk of the assembly in the vehicle context.
Overview
Commissioned and supervised by us
These tests run at external laboratories. We commission them, supervise the execution and provide the mock-up and installation.
| Test | Standard | What it covers |
|---|---|---|
| Air permeability | DIN EN 1026 | Air leakage of the closed unit |
| Watertightness under driving rain | DIN EN 1027 | Tightness under rain and wind pressure |
| Resistance to wind load | DIN EN 12211 | Deformation under wind pressure |
| Sound insulation | DIN EN ISO 10140-2 | Interior noise level |
| Vibration and shock testing | — | Vibration and shock in service |
| Hail, ice and solar radiation testing | DIN EN 50125-1 | Environmental conditions in rail service |
| Soft body impact | NF F01-492 | Impact of a soft body on the pane |
| Salt spray testing | DIN EN ISO 9227 | Corrosion resistance of the surfaces |
| Condensation water testing | DIN EN ISO 6270-1 | Resistance to condensation |
| EMC testing | — | Electromagnetic compatibility of electrical components |
| Thermal transmittance | DIN EN ISO 6946, DIN EN ISO 10077 | Calculation of the U-value |
Frequently asked questions
FAQ: test centre
Can I have products from other manufacturers tested at Cleff?
Yes. The test centre is also available for customer products. Make an appointment and tell us your individual test requirements.
Which standards does the test centre cover?
In our own test centre: UIC 566 (pressure cycling), DIN EN 14752 annex B and C (water and pressure tightness of doors), DIN EN 1191 (endurance) as well as DIN EN 45545-2 and, by analogy, DIN EN 45545-5 (fire load list and fire risk analysis). Further tests – such as wind load, sound insulation, climatic, corrosion and EMC testing – are commissioned and supervised by us at external laboratories.
Is the test centre accredited?
No. We test to the relevant standards, but our own test centre is not accredited. Where an accredited body is required, we commission and supervise an external laboratory.
Test rigs

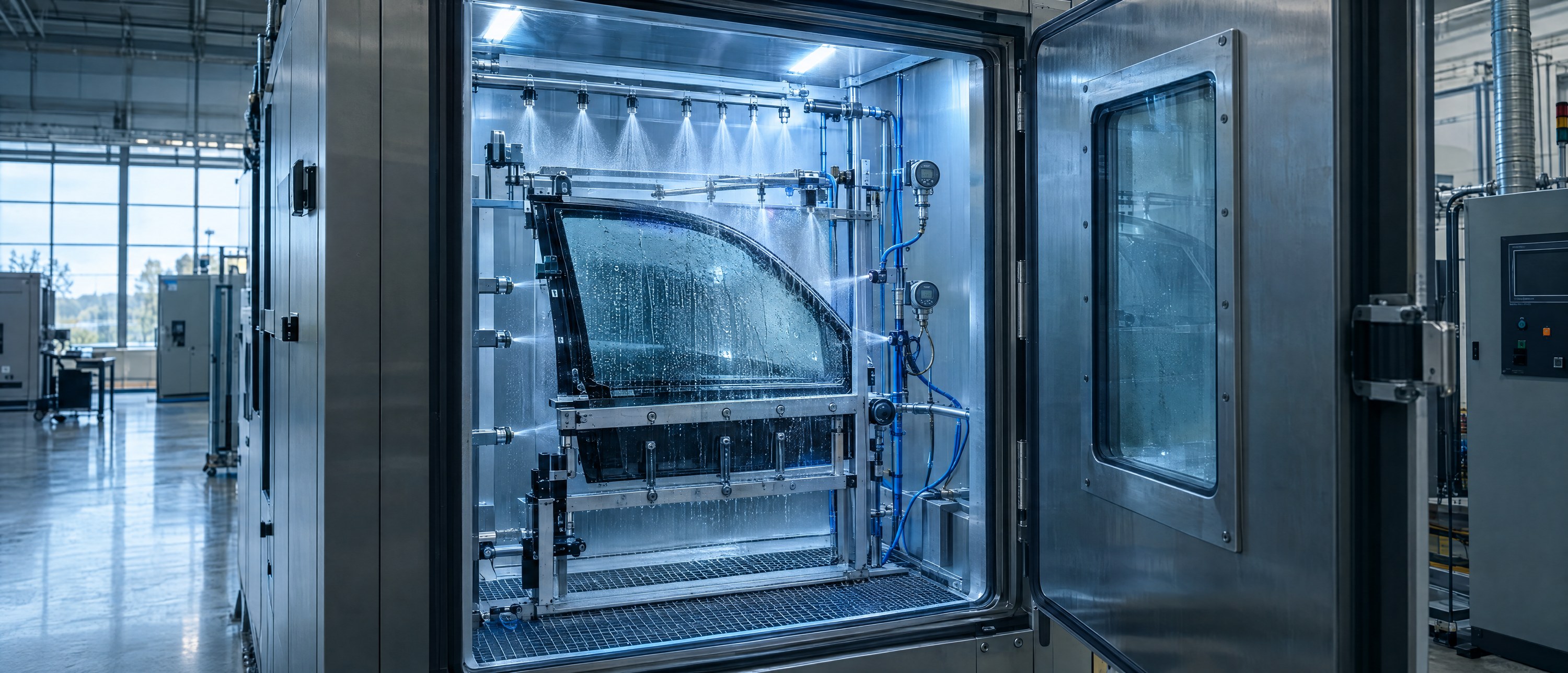

We test the finished component, not a model.
Pressure cycling, water and pressure tightness, endurance as well as fire load list and fire risk analysis – in our own test centre in Wuppertal, and on request for other manufacturers' components too.
